SAE Development Chassis

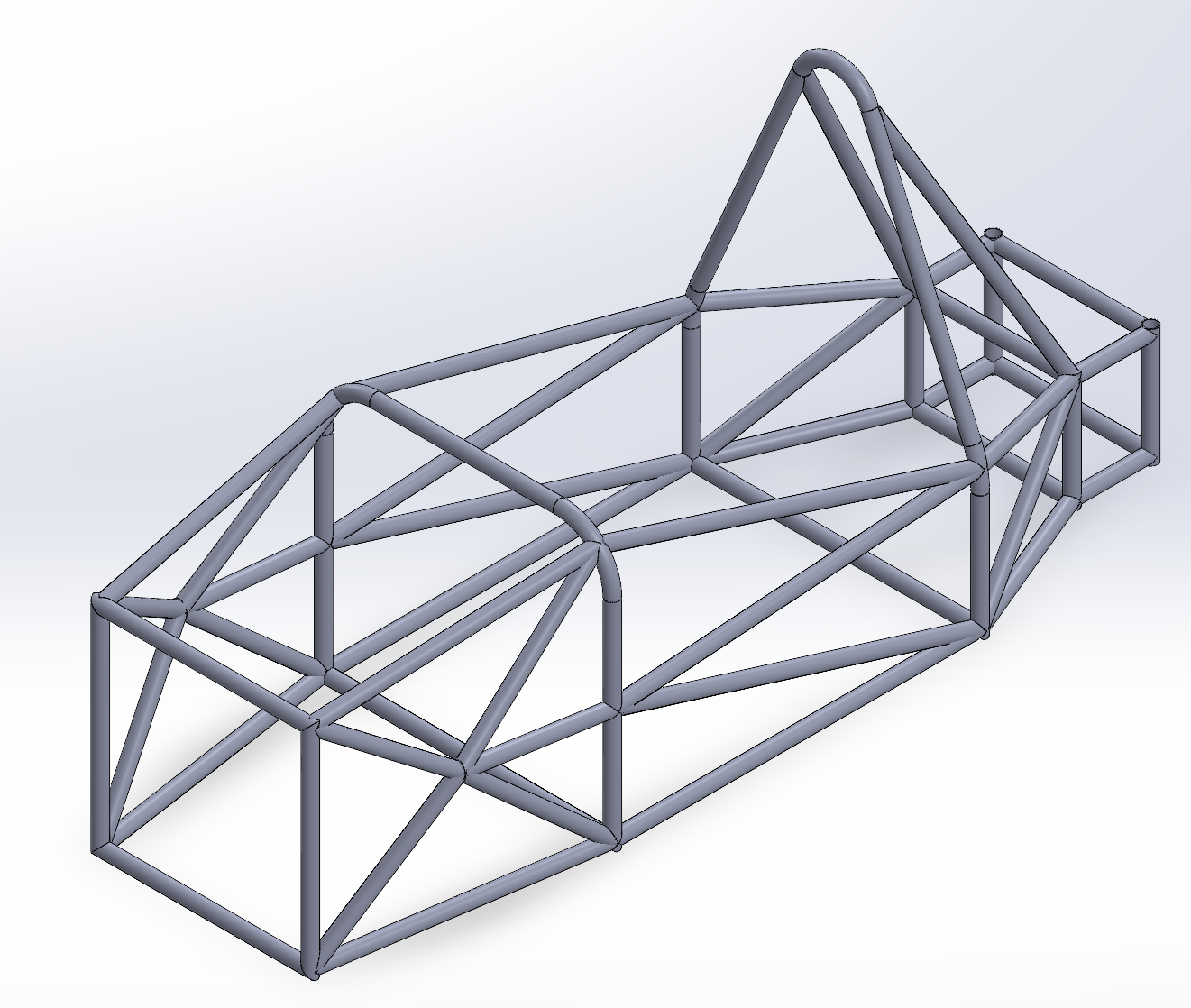

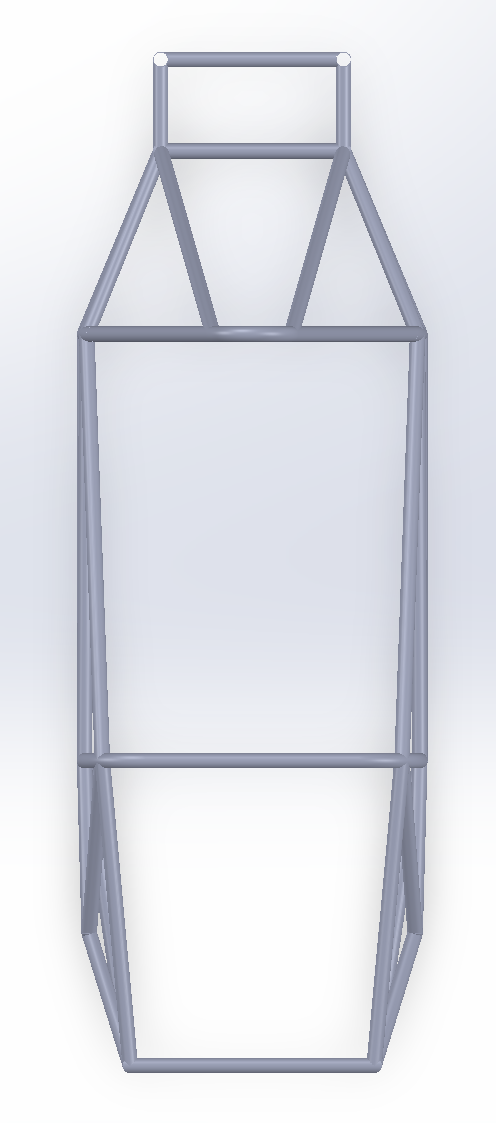

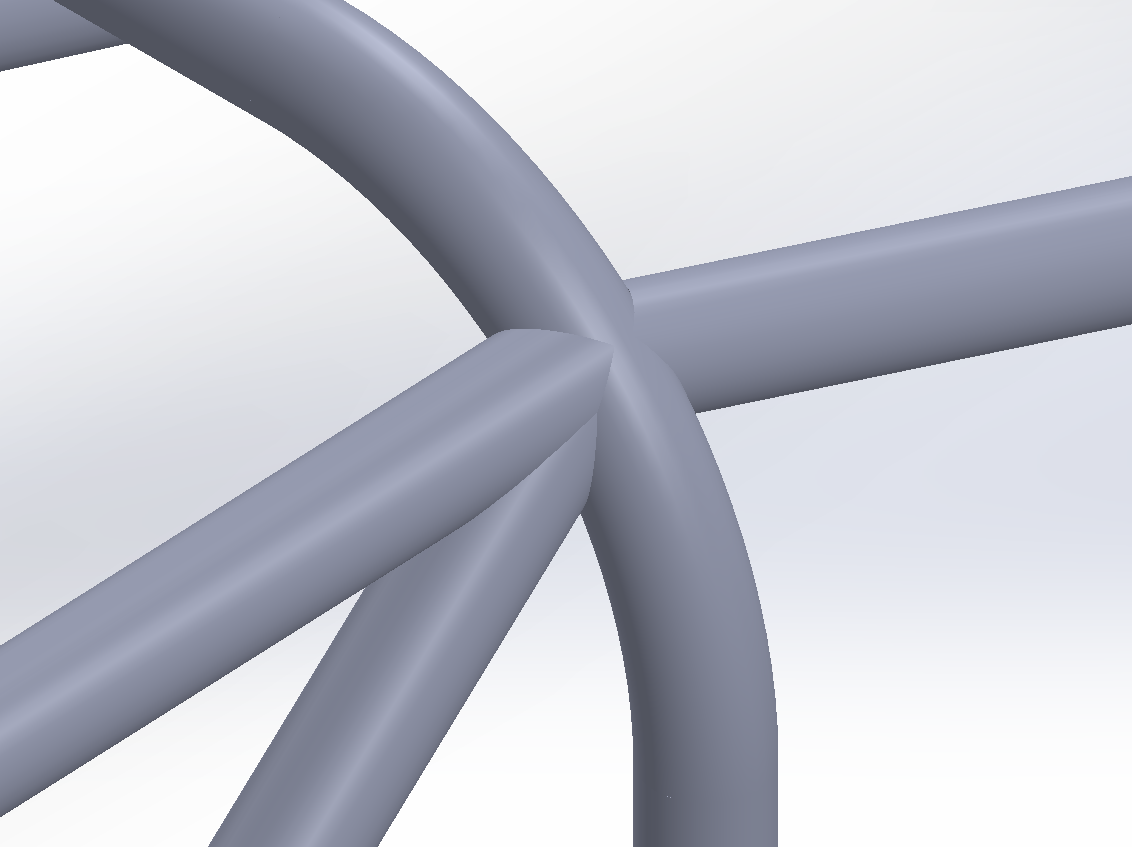

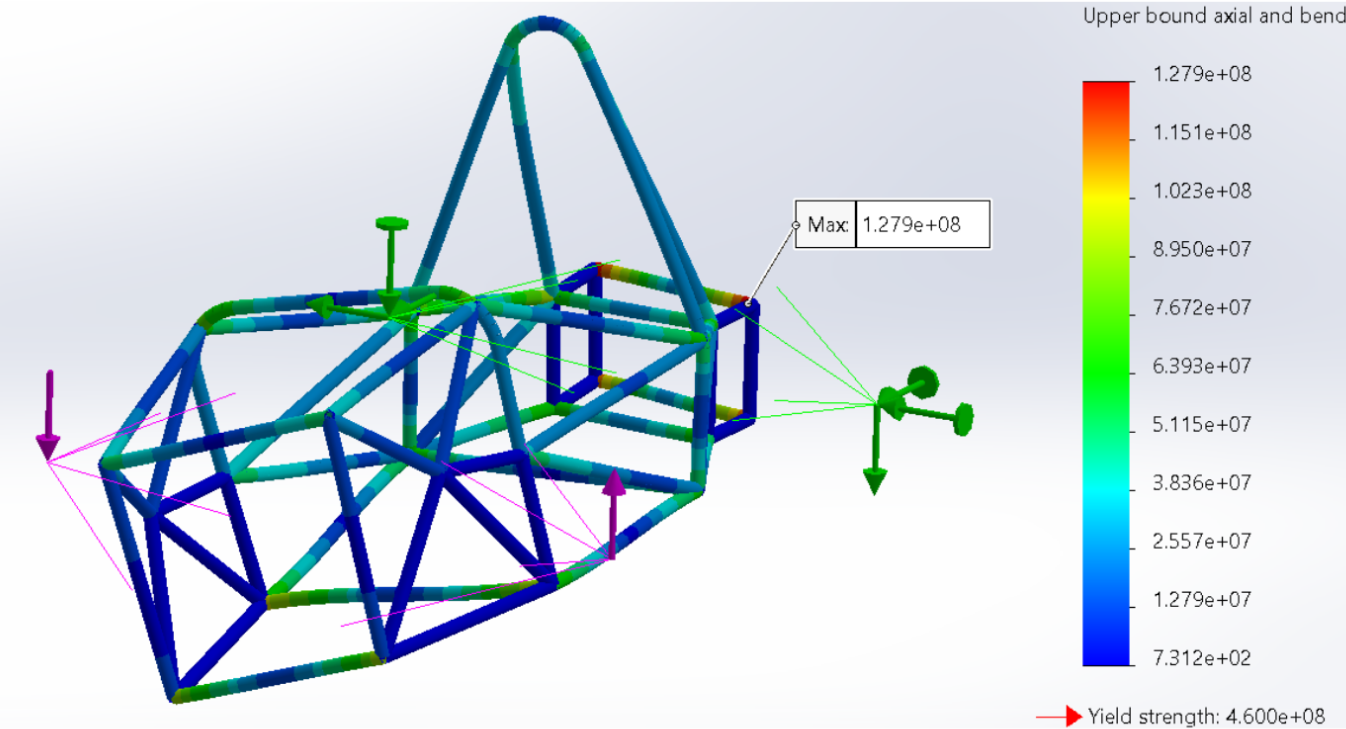

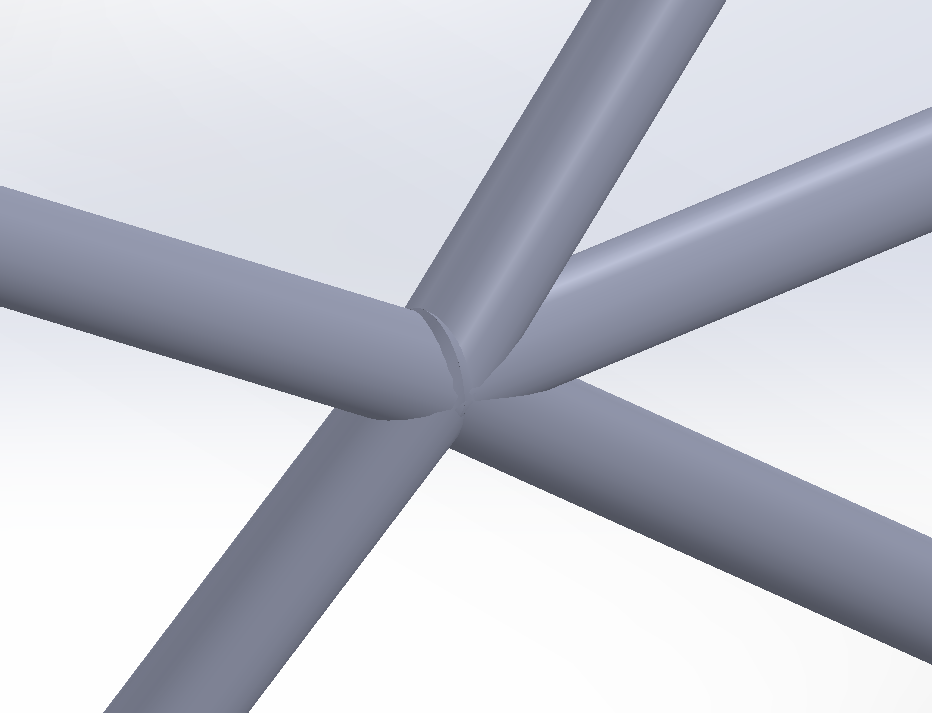

A rule-compliant FSAE Formula Electric space-frame chassis modeled with Solidworks CAD. FEA done to find a 3,229.6 Nm/deg torsional rigidity with a minimum FOS of 3.6. Weldments optimized to maximize strength-to-weight ratio.
